Orange Pumps
Spare Parts
DM500-CP710

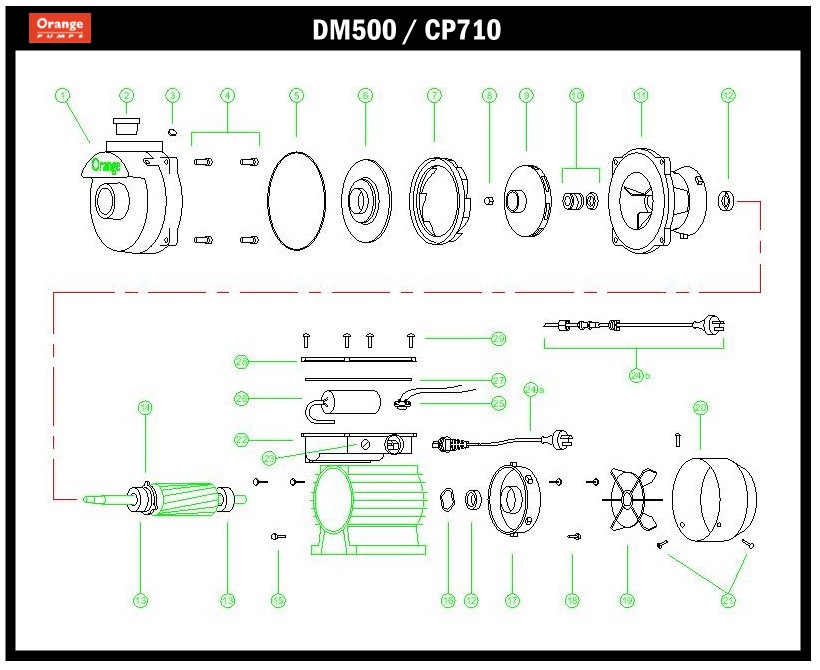

Part Numbers for Orange Pumps
| Item No. | Part Description | DM500 Part No. | CP710 Part No. |
|---|---|---|---|
| 1 | Casing, Centrifugal Pump | 100133 | 100133 |
| 2 | Bush, Reducing, 40x25mm BSP | 205153 | |
| 3 | Plug, 1/4"BSP Brass, & Washer | 100281 | 100281 |
| 4 | Nut, M10, S/S, (set of 4) | 202002 | 202002 |
| 4 | Screw, Set, S/S, (set of 4) | 200193 | 200193 |
| 5 | O'ring, Casing | 200167 | 200167 |
| 6 | Plate, Support, Diffuser | 100271 | 100271 |
| 7 | Ring, Diffuser | 100250 | 101260 |
| 8 | Nut, Lock | 100291 | 100291 |
| 9 | Impeller | 100328 | 100932 |
| 10 | Seal, Mechanical | 200099 | 200099 |
| 10 | Seal, Mechanical, Viton | V200099 | V200099 |
| 11 | Yoke | 100120 | 100120 |
| 12** | Seal, Lip, OD40mm | 200233 | 200233 |
| 12# | Seal, Lip, OD42mm | 200234 | 200234 |
| 13 | Bearing, 6205 | 200194 | 200194 |
| 14 | Cap, Bearing | 200209 | 200209 |
| 15 | Screw, Set, S/S, (set of 6) | 200195 | 200195 |
| 16 | Washer, Wave | 200196 | 200196 |
| 17 | Endshield | 200197 | 200197 |
| 18 | Screw, Set, S/S, (set of 3) | 200228 | 200228 |
| 19 | Fan | 200205 | 200205 |
| 20 | Cowl, Fan | 200206 | 200206 |
| 21 | Screw, S/S, (set of 3) | 200310 | 200310 |
| 22 | Housing, Terminal, Ribbed | 100455 | 100454 |
| 23 | Plug, Conduit | 200258 | |
| 24a | Lead, Power | 100361 | |
| 24b | Lead, Power, Assembly | ||
| 25 | Switch, Thermal, 1.5kW Motor | 200211 | |
| 26 | Capacitor, 35uF, (230V motor) | 200200 | |
| 26 | Capacitor, 18uF, (460V motor) | 200202 | |
| 27 | O'ring, Terminal Cover | 200169 | 200169 |
| 28 | Lid, Terminal Housing | 100456 | 100456 |
| 29 | Screw, M5x16, S/S, (set of 4) | 200334 | 200334 |
| Motor Assembly, 230V, 1500W | 300006 | ||
| Motor Assembly, 230V, 1500W, post 11/11 | 300016 | ||
| Motor Assembly, 415V, 1500W | 300008 | ||
| Motor Assembly, 415V, 2400W | 300009 | ||
| Motor Assembly, 460V, 2400W | 300010 | ||
| ** - Identifies part for pumps with serial no. DATED FROM 8/98 (see label plate). | |||
| # - Identifies part for pumps with serial no. DATED BEFORE 8/98 (see label plate). | |||
