Orange Pumps
Spare Parts

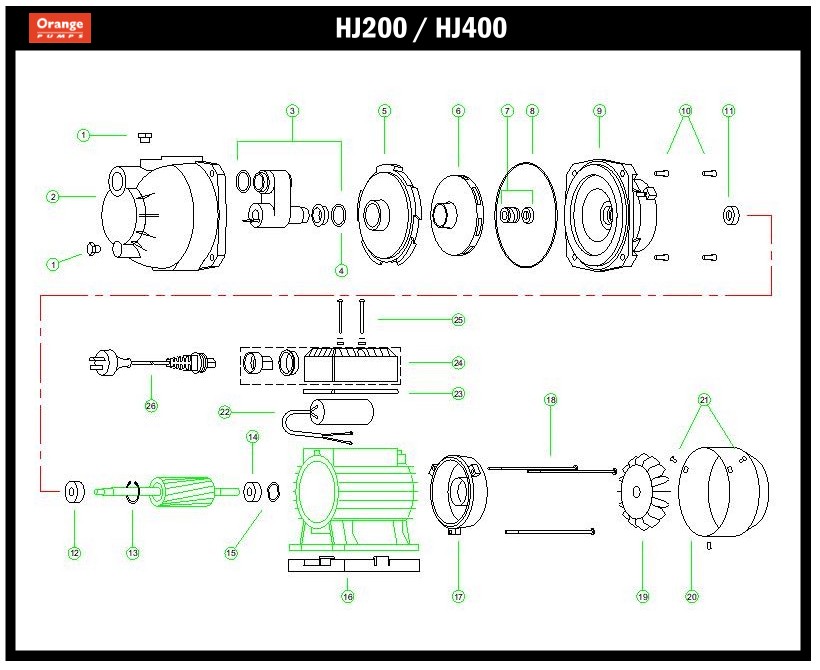

HJ200 / HJ400
Part Numbers for Orange Pumps
| Item No. | Part Description | HJ200 Part No. | HJ400 Part No. |
|---|---|---|---|
| 1 | Plug, 1/4" BSP Brass, & Washer | 100281 | 100281 |
| 2 | Casing | 100701 | 100701 |
| 3 | Injector Assembly | 101330 | 100590 |
| 4 | O'ring, Injector (set of 2) | 201730 | 201730 |
| 5 | Diffuser, Cast Iron | 100581 | 100581 |
| 5 | Diffuser, Plastic | 102270 | 102270 |
| 6 | Impeller | 100561 | 100561 |
| 7 | Seal, Mechanical | 200068 | 200068 |
| 7 | Seal, Mechanical, Viton | 200302 | 200302 |
| 8 | O'ring, Casing | 200036 | 200036 |
| 9 | Yoke | 100610 | 100610 |
| 10 | Screw, Set, S/S, (set of 4) | 200348 | 200348 |
| 11 | Seal, Lip | 200320 | 200320 |
| 12 | Bearing, 6203 | 200321 | 200321 |
| 13 | Circlip, Bore | 200439 | 200439 |
| 14 | Bearing, 6202 | 200039 | 200039 |
| 15 | Washer, Wave | 200053 | 200053 |
| 16 | Base, Motor | 100650 | 100650 |
| 17 | Endshield | 200325 | 200325 |
| 18 | Bolt, Thru, (set of 3) | 200349 | 200349 |
| 19 | Fan | 200346 | 200346 |
| 20 | Cowl, Fan | 200326 | 200326 |
| 21 | Screw, S/S, (set of 3) | 200310 | 200310 |
| 22 | Capacitor, 16uF | 200392 | |
| 22 | Capacitor, 20uF | 200052 | |
| 23 | Gasket, Terminal Cover | 100510 | 100510 |
| 24 | Cover, Terminal, Assembly | 100524 | 100524 |
| 25 | Screw Assembly, (set of 2) | 200311 | 200311 |
| 26 | Lead, Power | 100361 | 100361 |
| Motor Assembly, 550W | 300013 | ||
| Motor Assembly, 750W | 300012 | ||
