Orange Pumps
Spare Parts

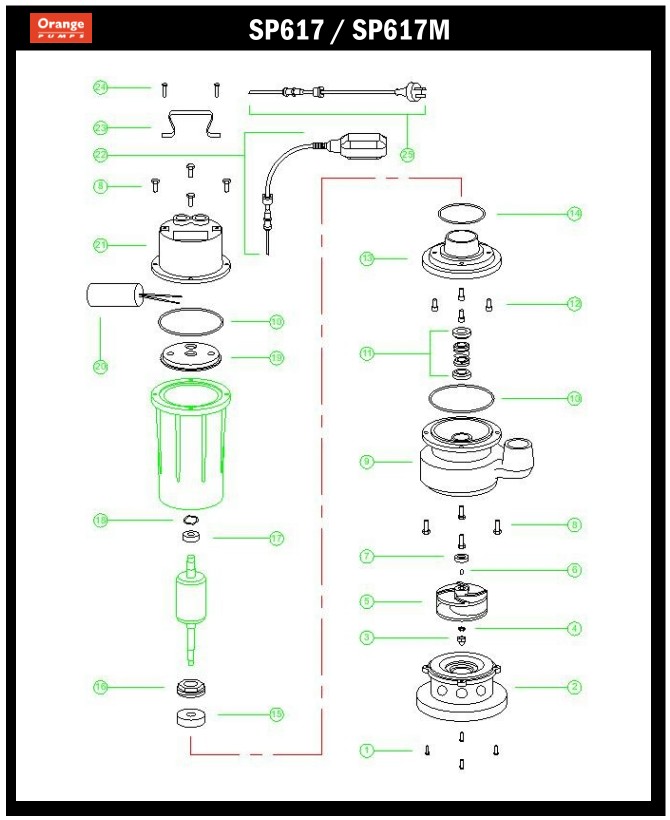

SP617 / SP617M
Part Numbers for Orange Pumps
| Item No. | Part Description | SP617/SP617M Part No. |
|---|---|---|
| 1 | Screw, Set, S/S, (set of 4) | 200327 |
| 2 | Stand, Suction | |
| 3 | Nut, Lock | 200461 |
| 4 | Washer, Lock | |
| 5 | Impeller | 200462 |
| 6 | Key | 200227 |
| 7 | Seal, Lip | 200463 |
| 8 | Screw, Set, S/S, (set of 4) | 200038 |
| 9 | Volute | |
| 10 | O'ring | 200061 |
| 11 | Seal, Mechanical, 20mm | 200451 |
| 12 | Screw, Alan Head Cap, M8x20, S/S, (set of 4) | |
| 13 | Bearing Plate | |
| 14 | O'ring, 96 x 3.5mm | |
| 15 | Bearing, 6305 | 200237 |
| 16 | Bearing Retainer | |
| 17 | Bearing, 6204 | 200336 |
| 18 | Washer, Wave | 200464 |
| 19 | Bearing Plate | |
| 20 | Capacitor, 35uF | 200200 |
| 20 | Capacitor, 16uF | 200392 |
| 20 | Capacitor, 20uF | 200052 |
| 21 | Lid | |
| 22 | Float, Switch, Assembly | |
| 23 | Handle | |
| 24 | Screw, Set, S/S, (set of 4) | 200229 |
| 21 | Lead, Power, Assembly | |
